Climate Control Seat
Main Function:
Seat heating and cooling
Protection Measures
Power supply anti-reverse,TED protection,
fan status monitoring, overvoltage/undervoltage protection, overcurrent protection.
Technical Parameter
Working voltage range: 9-16V Rated voltage: 13.5V
Working current: 6-9A
Temperature range: 1-45℃
Heating temperature(TED): 1-level 46℃, 2-level 52℃, 3-level 60℃
Cooling temperature(TED): 1-level 25℃, 2-level 20℃, 3-level 15℃
Working power: 75W-120W
Low noise: within 35 decibels
All components are tested at car level.
Additional information
Product Details:
Advantages:

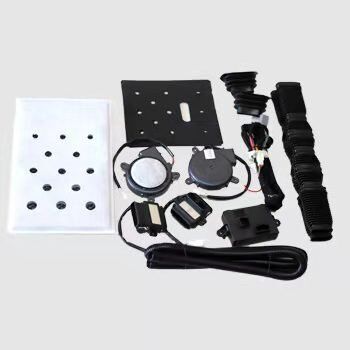

Climate control seat is mainly composed of TED, ECU, fan, air duct and wiring harness.
Heating & Cooling Module
Using ceramic substrate, semiconductor heating and cooling mode, high-temperature resistance heating mode
and cooling mode, temperature difference can be up to 45 degrees Celsius. By the frequency conversion
control mode, to achieve long service life, small heat aggregation, etc.
Turbofan
Pure copper body, built-in arc design, balance high-speed flying, low noise, strong wind.
High Quality Customized Air Duct
Smooth design, unobstructed ventilation. Reduce fan noise, improve comfort.
